Thermal Physics A

Teaching-route hub: “Thermal Physics A” is a wiki learning route, not an official 2026 syllabus topic label. The explicitly required ideas here are thermal equilibrium, the Kelvin scale evidence, specific heat capacity and specific latent heat. Thermometer calibration, heating curves and detailed practical methods are supporting or enrichment material.

Overview

Thermal Physics A studies the macroscopic behaviour of heat and temperature. It focuses on how substances gain or lose thermal energy, how temperature is measured, and how heating can cause temperature rise or change of state.

This topic comes before microscopic kinetic theory and later thermodynamics.

For the kinetic-theory and thermodynamics continuation, see Thermal Physics B.

Core ideas include:

• temperature and thermal equilibrium
• thermometric properties
• Celsius and Kelvin scales
• absolute zero
• heat capacity and specific heat capacity
• calorimetry and mixing
• latent heat
• heating curves
• electrical determination of thermal quantities

Boundary reminder:

• this page focuses on macroscopic thermal behaviour, measurement, and energy accounting
• particle-level gas models, rms speed, p-V processes, and the first law belong mainly to Thermal Physics B

Core Ideas

Thermal Physics A can be organised around three recurring ideas:

1. Temperature determines the direction of thermal energy transfer and can be measured through suitable thermometric properties.
2. Energy supplied to a substance may either change its temperature or change its state.
3. Thermal calculations are usually energy-accounting questions, so clear distinction between processes matters.

Exam Relevance

This topic is heavily tested through formula choice, multi-stage heating logic, and practical interpretation. Most errors come from mixing up temperature change with phase change, or from using correct equations under the wrong assumptions about heat loss and equilibrium.

Temperature, Heat and Internal Energy

This section gives the language needed for Topic 12A calculations. The fuller particle explanation of internal energy is developed in Thermal Physics B.

Temperature

Temperature indicates the degree of hotness of a body. It determines the direction of thermal energy transfer.

If two objects are placed in contact:

• thermal energy is transferred from the higher-temperature object to the lower-temperature object
• net transfer continues until both reach the same temperature

Heat

Heat is energy transferred because of temperature difference.

Heat is not something stored inside an object. Once transferred, it becomes part of the object’s internal energy.

Internal Energy

Internal energy is the total microscopic energy stored in a substance, including:

• random kinetic energy of particles
• intermolecular potential energy

Thermal Equilibrium

Two bodies are in thermal equilibrium when:

• they are at the same temperature
• there is no net thermal-energy transfer between them

This is the basis of temperature measurement.

Thermometric Properties

A thermometric property is a physical property that changes with temperature and can be used to measure temperature.

Examples:

• length of metal strip
• volume of liquid
• gas pressure
• electrical resistance

In practice, liquid expansion, gas pressure, and electrical resistance are common because they are measurable and usually close to linear over a useful working range.

Good Thermometric Property

Should be:

• measurable
• sensitive to temperature change
• reproducible
• approximately linear over the range used
• stable and reliable

Measurement Scales

If thermometer property is $x$ that changes with temperature linearly over a range from $T_{\text{lower}}$ to $T_{\text{upper}}$, then

$$\frac{T-T_{\text{lower}}}{T_{\text{upper}}-T_{\text{lower}}}=\frac{x-x_{\text{lower}}}{x_{\text{upper}}-x_{\text{lower}}}$$

The traditional Celsius scale uses:

• ice point = $0^{\circ }\mathrm{C}$
• steam point = $100^{\circ }\mathrm{C}$

If $x$ changes linearly with temperature from ice point to steam point:

• $x_0$ at ice point
• $x_{100}$ at steam point
• unknown reading $x$

Then:

$$T=\frac{x-x_0}{x_{100}-x_0}\times 100$$

See Thermal Measurement and Scales.

Kelvin Scale and Absolute Zero

The Kelvin scale is an absolute thermodynamic scale.

The numerical value of temperature in Kelvin is obtained by adding 273.15 to the Celsius value:

$$T_{\mathrm{K}}=T_{{}^{\circ }\mathrm{C}}+273.15$$

Since the Kelvin and Celsius readings for the same temperature differ by the constant value 273.15, a temperature difference has the same numerical value on both scales.

Examples:

• $0^{\circ }\mathrm{C}\to 273.15\mathrm{K}$
• $100^{\circ }\mathrm{C}\to 373.15\mathrm{K}$

In this example, the temperature interval from $0^{\circ }\mathrm{C}$ to $100^{\circ }\mathrm{C}$ is:

$$\Delta T=100^{\circ }\mathrm{C}=100\mathrm{K}$$

Absolute zero corresponds to:

$$0\mathrm{K}=-273.15^{\circ }\mathrm{C}$$

At absolute zero, substances have minimum internal energy for that substance. This does not mean every form of microscopic energy is literally zero; the key H2 idea is that $0\mathrm{K}$ is the lowest thermodynamic temperature.

Constant-Volume Gas Thermometer

A fixed mass of gas is enclosed in a bulb connected to a narrow tube and a mercury manometer.

To make a reading, the experimenter adjusts the movable mercury reservoir until the mercury meniscus on the gas side returns to a fixed fiducial mark. Returning to the same mark restores the same enclosed-gas volume; a narrow capillary makes this setting more precise but does not, by itself, keep the volume constant.

As the temperature changes, the gas pressure changes. The pressure is measured using the manometer height difference $h$.

Figure 1. The bulb is brought to the temperature being measured. The reservoir is then adjusted until the gas-side mercury meniscus returns to the fiducial mark, restoring the fixed volume. The manometer difference $h$ is read only after this adjustment and is used to infer the gas pressure.

For the arrangement shown,

$$P_{\text{gas}}=P_{\text{atm}}-\rho gh$$

where:

• $\rho$ = density of mercury
• $g$ = gravitational field strength
• $h$ = vertical height difference between mercury levels

The sign of the $\rho gh$ term depends on which mercury surface is higher. In exam answers, state the pressure relation for the actual manometer arrangement shown.

Since the gas volume is approximately constant, by the ideal gas law:

$$P\propto T$$

Therefore, the height difference $h$ varies approximately linearly with temperature and may be used as a thermometric property.

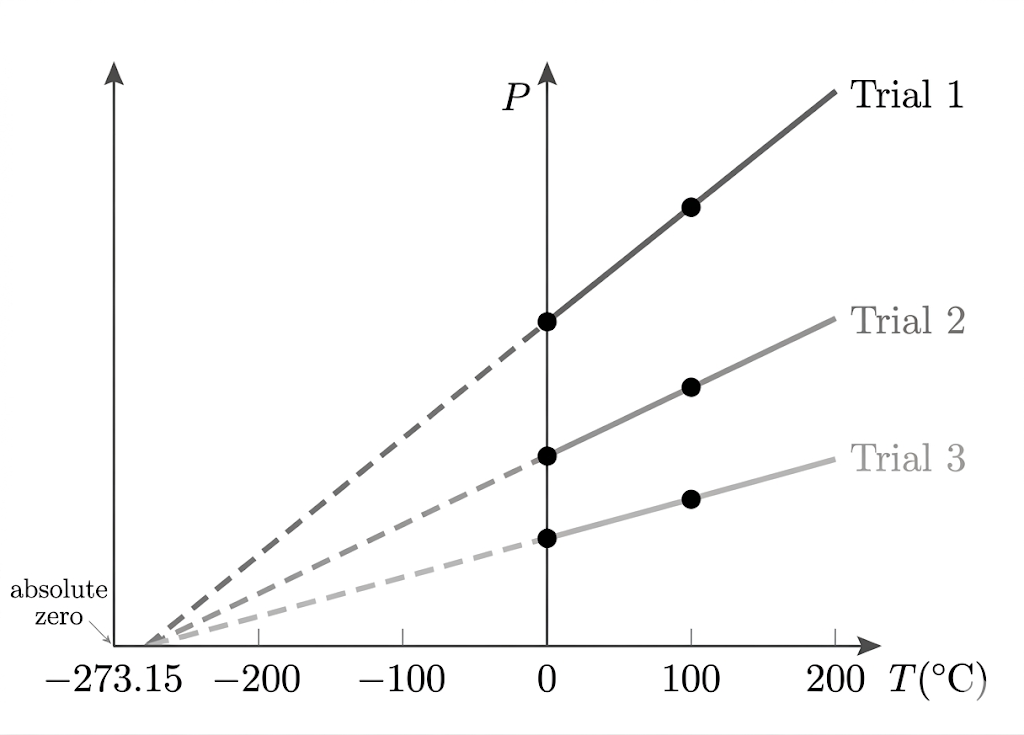

Figure 2. For several low-density gases, constant-volume pressure varies approximately linearly with Celsius temperature. Extrapolating the straight trends towards zero pressure gives a common intercept near $-273.15^{\circ }\mathrm{C}$. Zero pressure is not directly reached in this experiment; the common low-density limit is evidence for an absolute, substance-independent scale.

Zeroth Law of Thermodynamics

If:

• A is in thermal equilibrium with C
• B is in thermal equilibrium with C

Then:

• A is in thermal equilibrium with B

This law justifies the use of thermometers.

Heat Capacity and Specific Heat Capacity

Heat supplied to an object causing temperature rise:

$$Q=C\Delta T$$

Where:

• $Q$ = thermal energy supplied
• $C$ = heat capacity

Heat capacity is the thermal energy required to raise the temperature of an object by $1\mathrm{K}$.

Unit:

$$\mathrm{J}{\mathrm{K}}^{-1}$$

Large heat capacity means the temperature changes only a little for a given energy input. Water is the classic example.

For the same material, the amount of heat required to raise the temperature by $1\mathrm{K}$ is proportional to the mass of the object. Therefore, heat capacity $C$ describes a particular object, not the intrinsic thermal property of the material itself.

A more suitable quantity for describing the material is the heat capacity per unit mass:

$$c=\frac{C}{m}$$

This is called the specific heat capacity.

For mass $m$:

$$Q=mc\Delta T$$

Where:

• $c$ = specific heat capacity

Specific heat capacity is the thermal energy required to raise the temperature of 1 kg of a substance by 1 K.

Unit:

$$\mathrm{J}\mathrm{k}{\mathrm{g}}^{-1}{\mathrm{K}}^{-1}$$

See Heat Capacity and Latent Heat.

Calorimetry and Mixing

For an insulated system containing multiple interacting bodies, thermal energy transferred from hotter parts equals the thermal energy gained by cooler parts.

$$\text{Thermal energy lost}=\text{Thermal energy gained}$$

This follows from conservation of energy, since no energy is transferred between an insulated system and the surroundings.

Typical examples:

• hot metal placed in cold water
• mixing liquids
• final equilibrium temperature

If a calorimeter is part of the setup, its heat capacity must be included unless the question says it is negligible.

Worked Example 1: Mixing

In an insulated system, a $0.50\mathrm{kg}$ block of metal at $100^{\circ }\mathrm{C}$ is placed in water. Water gains $8400\mathrm{J}$. Find heat lost by metal.

Since insulated:

$$Q_{\text{lost}}=Q_{\text{gained}}=8400\mathrm{J}$$

Latent Heat

During melting or boiling:

• temperature remains constant
• energy changes molecular arrangement instead of kinetic energy

This assumes the substance is already at its melting or boiling temperature for the pressure concerned. If it starts below that temperature, include a warming stage first.

Formula

$$Q=ml$$

Where:

• $m$ = mass
• $l$ = specific latent heat

Unit:

$$\mathrm{J}\mathrm{k}{\mathrm{g}}^{-1}$$

Types of Specific Latent Heat

Fusion

Energy required per kg to convert:

• solid $\to$ liquid

at constant temperature.

Vaporisation

Energy required per kg to convert:

• liquid $\to$ gas

at constant temperature.

Usually:

$$l_v>l_f$$

because particles separate much more in gas state.

Heating Curves

For a pure substance at fixed pressure and with continued heating, a typical heating curve is:

1. solid warms
2. melting plateau
3. liquid warms
4. boiling plateau
5. gas warms

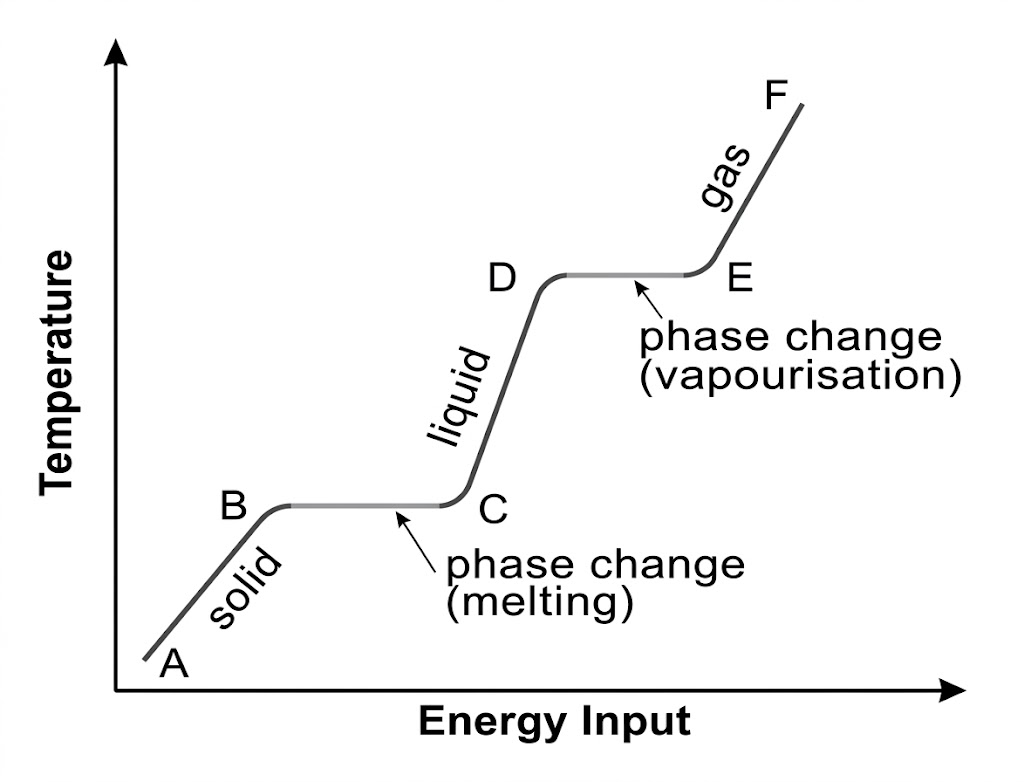

Figure 3. Heating curve for a pure substance at fixed pressure. Along A→B, C→D and E→F, energy raises temperature within one phase, so $Q=mc\Delta T$. Along B→C and D→E, two phases coexist and energy changes interparticle potential energy while temperature remains constant, so $|Q|=ml$. If the horizontal axis is time, plateau widths may be compared as energies only when mass and net heating power are controlled.

For constant net heating power $P_{\mathrm{net}}$, plateau duration is $t=ml/P_{\mathrm{net}}$. Without that control, a wider drawn plateau does not by itself prove a larger latent heat.

Interpretation

Sloping region:

• temperature rises
• use $Q=mc\Delta T$

Flat region:

• temperature constant
• use $Q=ml$

Worked Example 2: Melting Ice

How much energy to melt $0.20\mathrm{kg}$ ice at $0^{\circ }\mathrm{C}$?

Given:

$$l_f=3.34\times 10^5\mathrm{J}\mathrm{k}{\mathrm{g}}^{-1}$$

Then:

$$Q=ml=(0.20)(3.34\times 10^5)=6.68\times 10^4\mathrm{J}$$

Supporting practical methods

Scope

The 2026 syllabus requires the thermal definitions and calculations, but it does not prescribe this list of apparatus methods. Use this section for experimental-transfer skills after securing the core.

Electrical heating supplies energy:

$$E=IVt$$

Where:

• $I$ = current
• $V$ = p.d.
• $t$ = time

For a solid metal block:

$$IVt=mc\Delta T$$

Hence:

$$c=\frac{IVt}{m\Delta T}$$

For latent heat practicals:

$$IVt=ml$$

with corrections for heat loss when needed.

See Thermal Practicals.

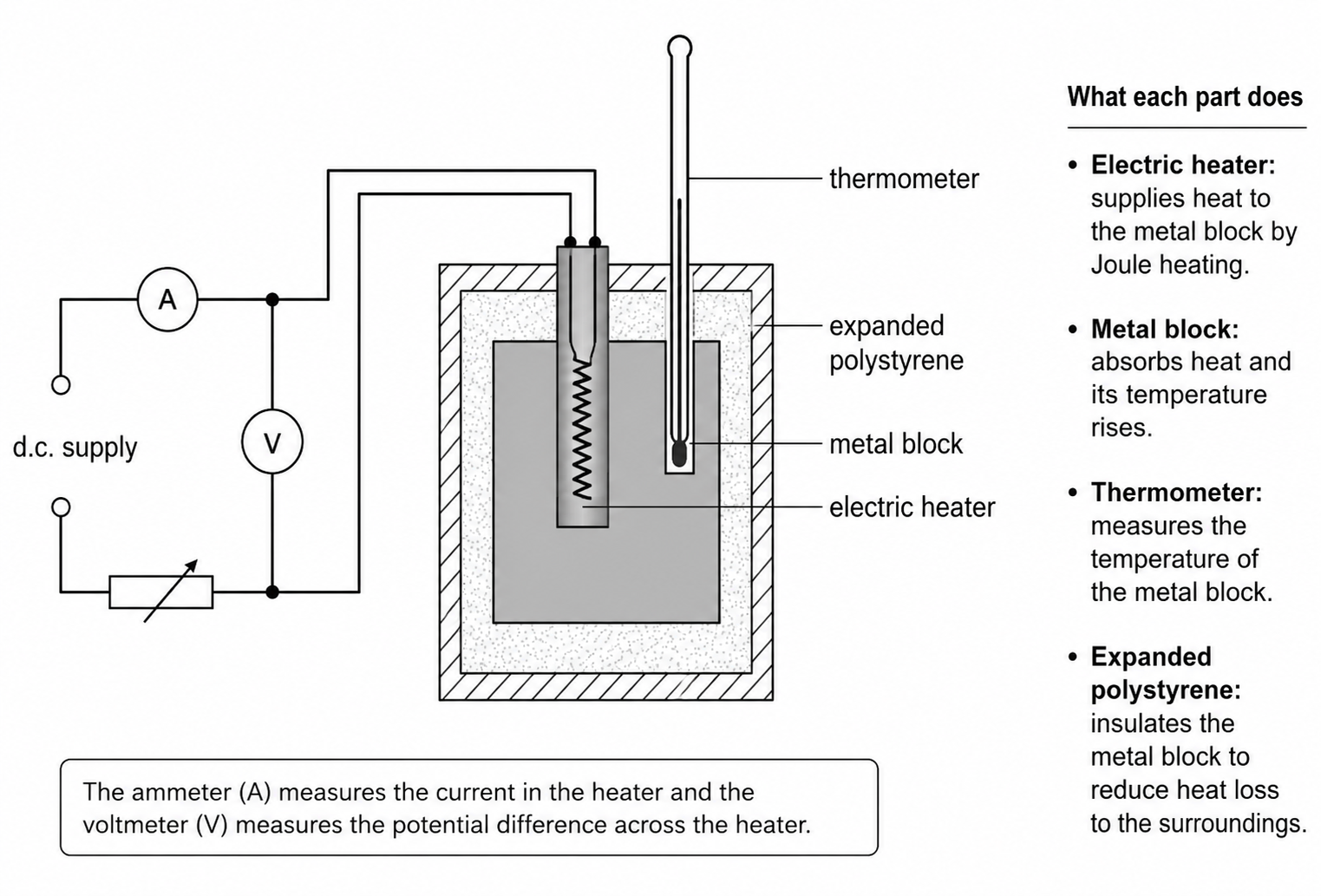

Figure 4. Measure $V$, $I$, heating time $t$, sample mass $m$ and temperature rise $\Delta T$. In the ideal model, $VIt=mc\Delta T$; in a real experiment, some input also warms the heater/container and escapes to the surroundings, so assigning all $VIt$ to the sample usually overestimates $c$.

The same electrical method can be adapted for latent-heat experiments, but the analysis must account for any heat lost to the surroundings.

Worked Example 3: Heater Problem

A heater rated $1000\mathrm{W}$ runs for 5 min.

Find energy supplied.

$$Q=Pt=1000\times 300=3.0\times 10^5\mathrm{J}$$

Formula Summary

Temperature Conversion

$$T(\mathrm{K})=T{(}^{\circ }\mathrm{C})+273.15$$

Heat Capacity

$$Q=C\Delta T$$

Specific Heat Capacity

$$Q=mc\Delta T$$

Latent Heat

$$Q=ml$$

Electrical Heating

$$E=IVt$$

Electrical SHC Determination

$$IVt=mc\Delta T$$

Common Exam Pitfalls

1. Heat vs Temperature

Heat = transferred energy.
Temperature = measure of hotness.

2. Celsius vs Kelvin

Use Kelvin where absolute temperature is needed.

3. Forgetting Constant Temperature in Phase Change

During melting or boiling:

• temperature does not rise
• provided the substance is already at the phase-change temperature

4. Wrong Units

Convert:

• g to kg
• min to s
• kW to W

5. Heat Capacity vs Specific Heat Capacity

• $C$: whole object
• $c$: per kg

6. Assuming No Heat Loss Automatically

Only if stated insulated or negligible losses.

For a full checklist see Thermal Physics A Common Exam Traps.

Links

• Work, Energy and Power
• Thermal Measurement and Scales
• Heat Capacity and Latent Heat
• Thermal Practicals
• Thermal Physics A Common Exam Traps

Summary

Thermal Physics A is fundamentally about deciding what the supplied energy is doing:

• setting thermal equilibrium and temperature scales
• raising temperature
• changing state
• or being measured electrically in practical work

Strong performance comes from choosing the correct thermal model for each stage and keeping definitions precise.
